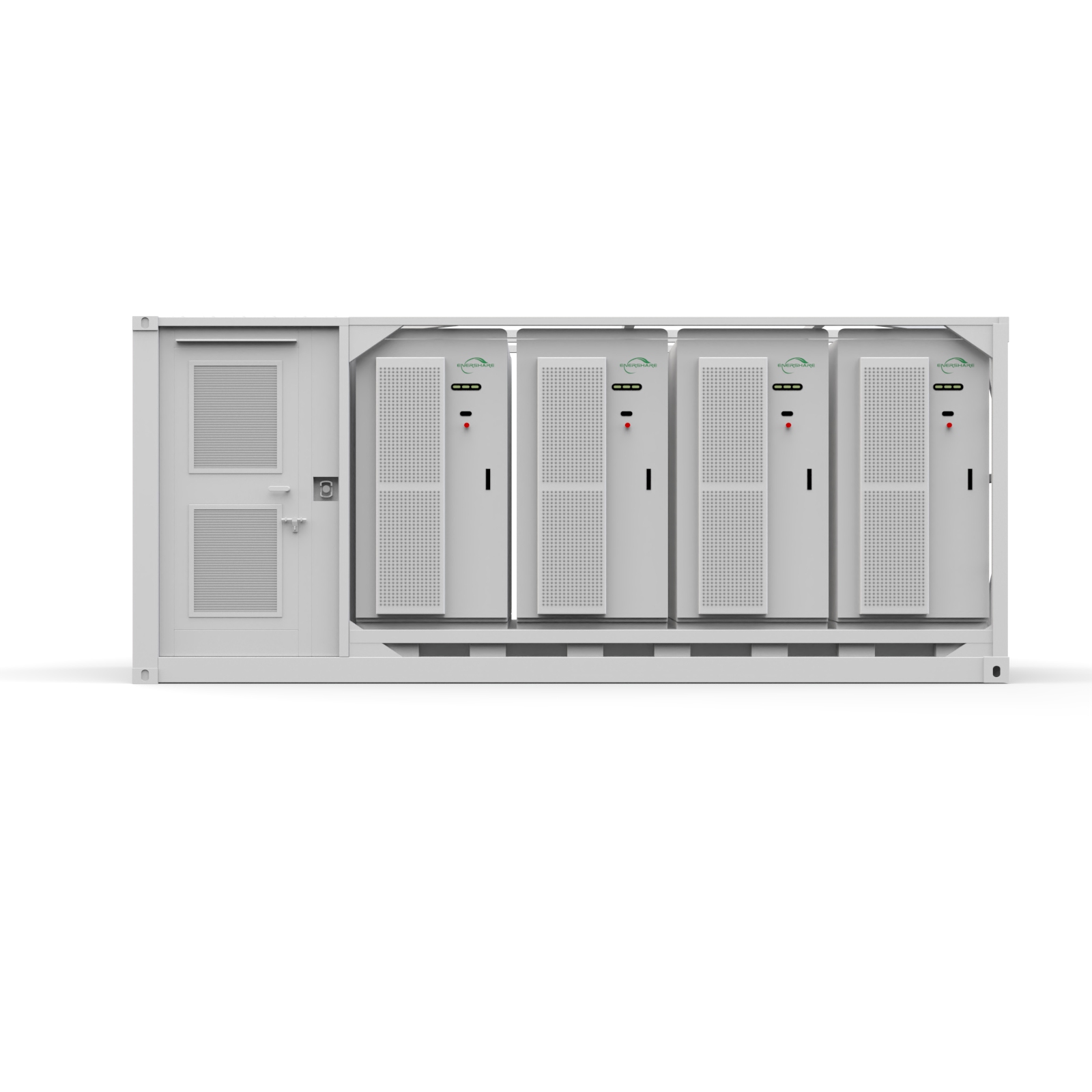

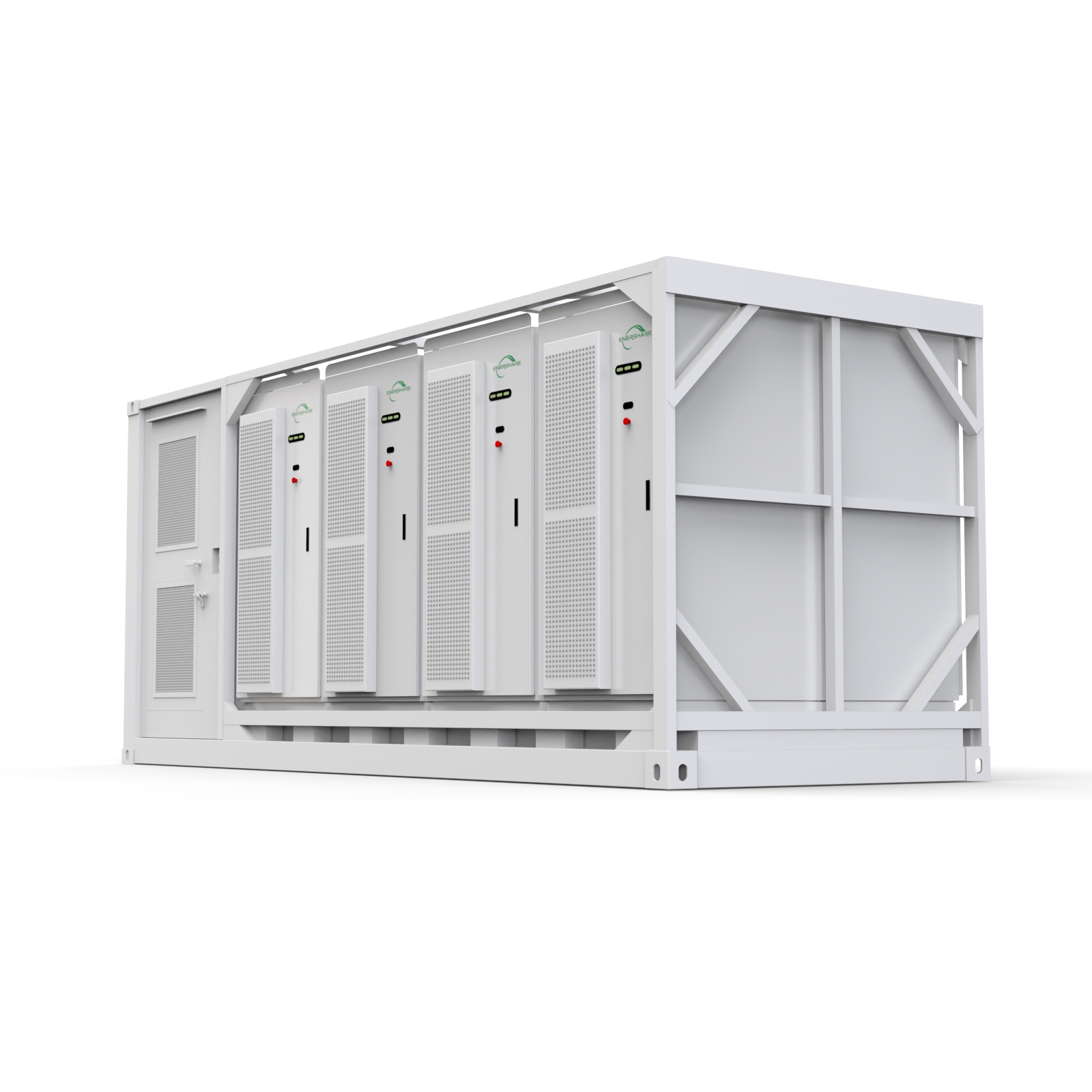

1mwh bess battery energy storage system Containerized battery storage power station 1C charging/discharging distributed energy resources Solutions

With 1C charging/discharging capabilities, it enables rapid and efficient energy transfer. The containerized design ensures easy installation and deployment. Ideal for a variety of applications, it offers reliable energy storage, helping to optimize energy usage, reduce grid dependency, and contribute to a more sustainable energy future.
Return the list
Contact us

Product Details

Model NO

EnerBank-1000

Battery Parameters

Battery cell

LiFePO 4 - 280Ah

Battery module

1P20S

Battery string

1P220S ( 11 modules)

Battery System

6*1P220S

Battery Capacity ( BOL )

1182kWh

Battery voltage range

616V~792V

AC Side Parameters

Grid type

PCS side: 400V , 3P3W

Rated output power

1000kW

Rated voltage

AC400V

Rated frequency

50/60(±5)Hz

Maximum output current

1442A

Output harmonics

< 3% (at rated power)

Overload capacity

110% , 10mins ; 120% , 60s

Common Parameters

Protection level

Outdoor installation (Battery cabinet: IP55 , electrical compartment: IP54)

Cooling method

Battery Cabinets: industrial air conditioning, electrical compartment: forced air cooling

Anti-corrosion level

C3

Operating temperature *

-30℃~55℃

Relative humidity

0~95% (no condensation)

Working altitude **

<2000m

Fire Fighting System

Fire Alarm & FM200/ Novec1230

Noise

≤75dB

Dimension

20HQ Container (6058mm*2438mm*2896mm)

Weight

18500kg

Communication Interface

Ethernet, RS485

Protocol

Modbus TCP/IP , Modbus-RTU

Certification

System: IEC/EN61000 , IEC/EN62477

Battery cell: GB/T 36276 , IEC 62619 , UL1973 , UL1642 , UL9540A

PACK : UN38.3

PCS : CEI 016 , EN50549-1, EN50549-2,G99, UNE 206007, UNE 217002, IEEE 1547, IEC 61727&IEC 62116, NRS 097-2-1,NTS 631
